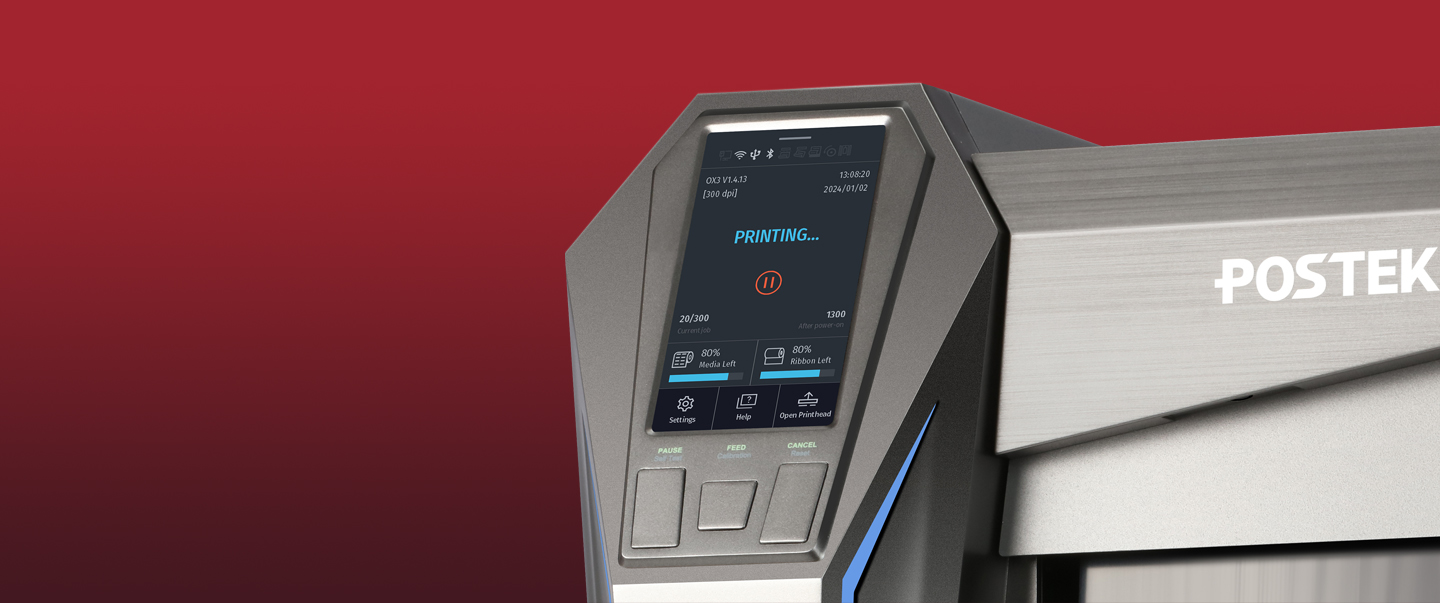

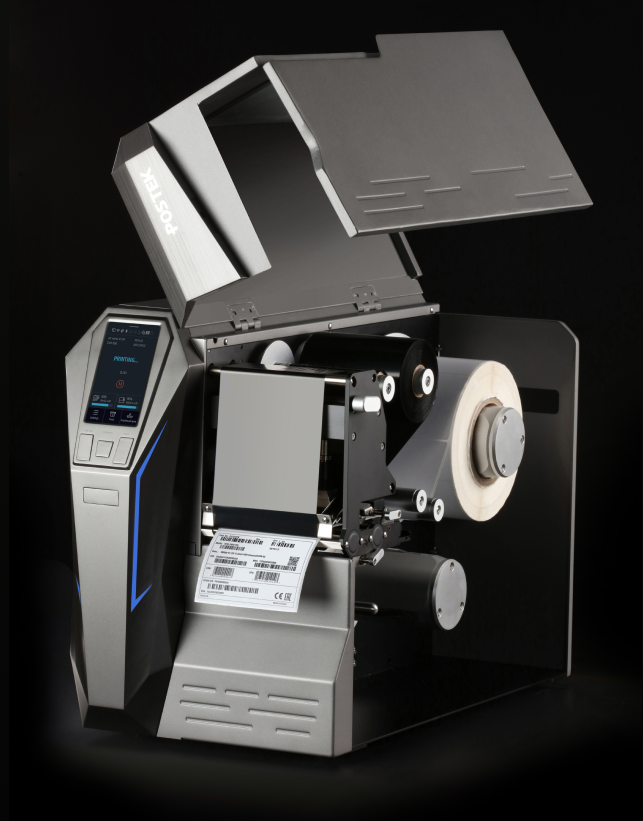

The OX Series RFID Barcode and Label Printer

Featuring the fastest read and encode speeds in the industry, POSTEK'S OX Series RFID and Label Printer brings you unwavering reliability and compatibility that sets you above the competition.

Get Started

Get Started Today

Industry-Leading RFID Technology

Up to 3X Faster* Encoding & Reading

POSTEK's OX Series barcode label printer not only delivers a highly reliable RFID experience but also some of the fastest encoding speeds in the industry

Best-in-class RFID Tag Compatibility

POSTEK RFID Printers offers the best in class RFID tag compatibility to work with a variety of Commercially available tags with no software or hardware adjustments

External RFID Verifier

An optional RFID Verifier module on the OX Series barcode printer allows for a 100% accurate encoding experience. Making it perfect for large print jobs and automated applications

Automated Calibration Process

Boost efficiency with a one-click automated calibration process that maximizes the encoding speed of your specific RFID tags.

*Printing and encoding speeds are based on testing with select RFID tags.

Best-in-Class
Reliability for
Advanced Printing With our steadfast dedication to quality and innovation, POSTEK barcode printers has received many awards for our continual push to create the next best thing.

With that being said, nothing is more important than reliability for an industrial RFID printer. That's why POSTEK industrial RFID printers feature a unique, patented aluminum print engine frame that offers unparalleled stability and durability. Helping the printer meet your tough demands for years to come.

Experience RFID and Label Printing Excellence, Tailor-Made to Your Needs

Get Started

Robust Design That Results in the Ultimate Printing Machine
The OX Series is a blend of art and industry-leading technology, able to produce consistently quality RFID and label prints with innovative features geared towards ease of use and efficiency.

Advanced Dynamic Adaptive
Precision Tuning (ADAPT™)

Cut back on the need for maintenance while retaining impeccable quality.

HEAT™ Technology

The OX Series barcode label printer provides high caliber printouts combined with an unmatched user experience.

Automatic Precision Printhead Pressure Adjustment

Adjust printhead pressure through the on-board electric motor. Turning a job for technicians to a few taps on the LCD screen.

Real-Time Visual Verification

Fully integrated to check the integrity of labels to ANSI and ISO standards (optional feature).

INNOVATIVE DESIGN

LONGEVITY

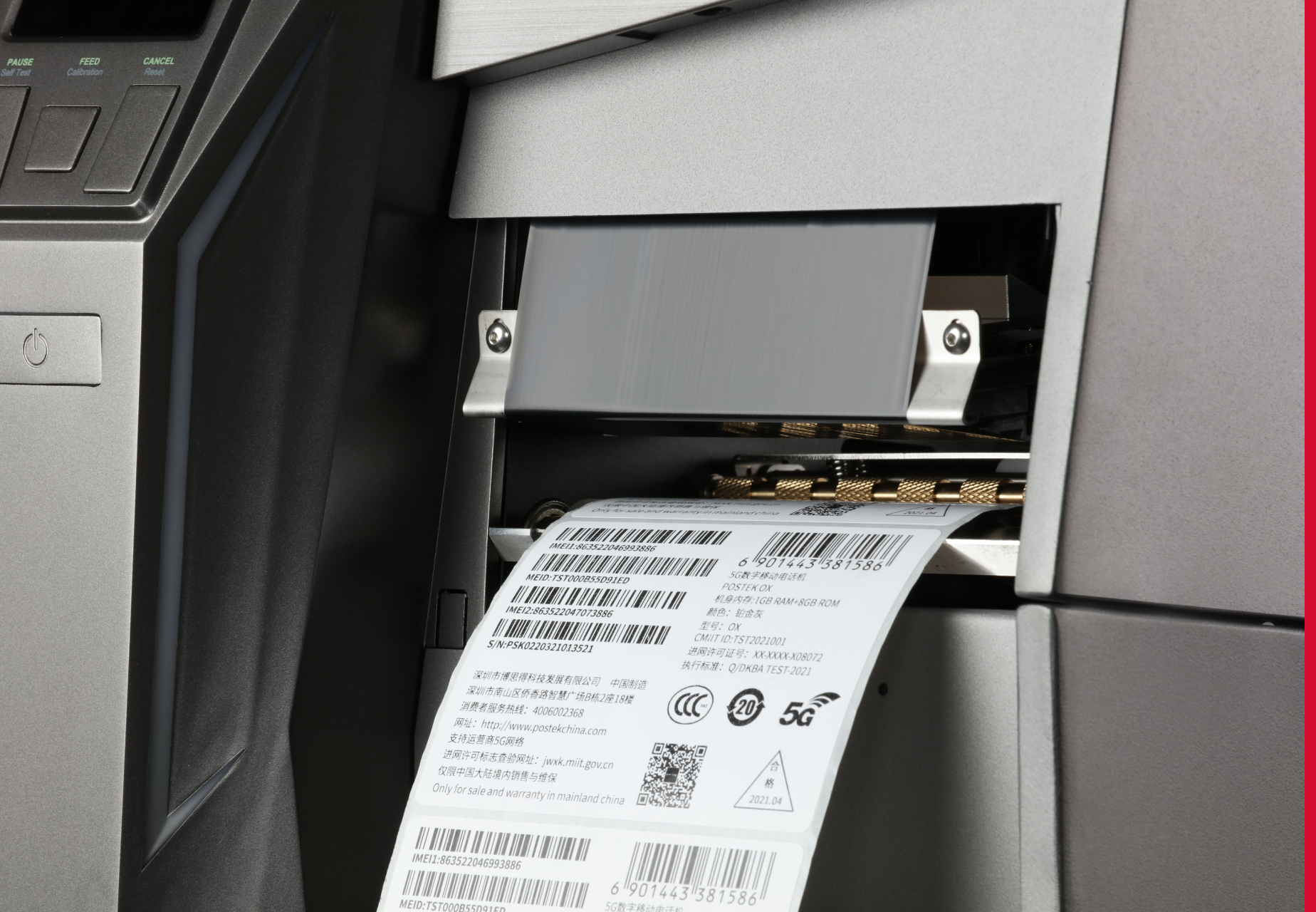

Ribbon Saving Kit

When equipped with the Ribbon Saving Kit, the OX series barcode printer automatically lifts the printhead during the empty portions of the media under predefined conditions and locks down to print again when needed. Eliminating the consumption of ribbon without printing and extending printhead life span by putting an end to unnecessary wear and tear.

ACCURACY

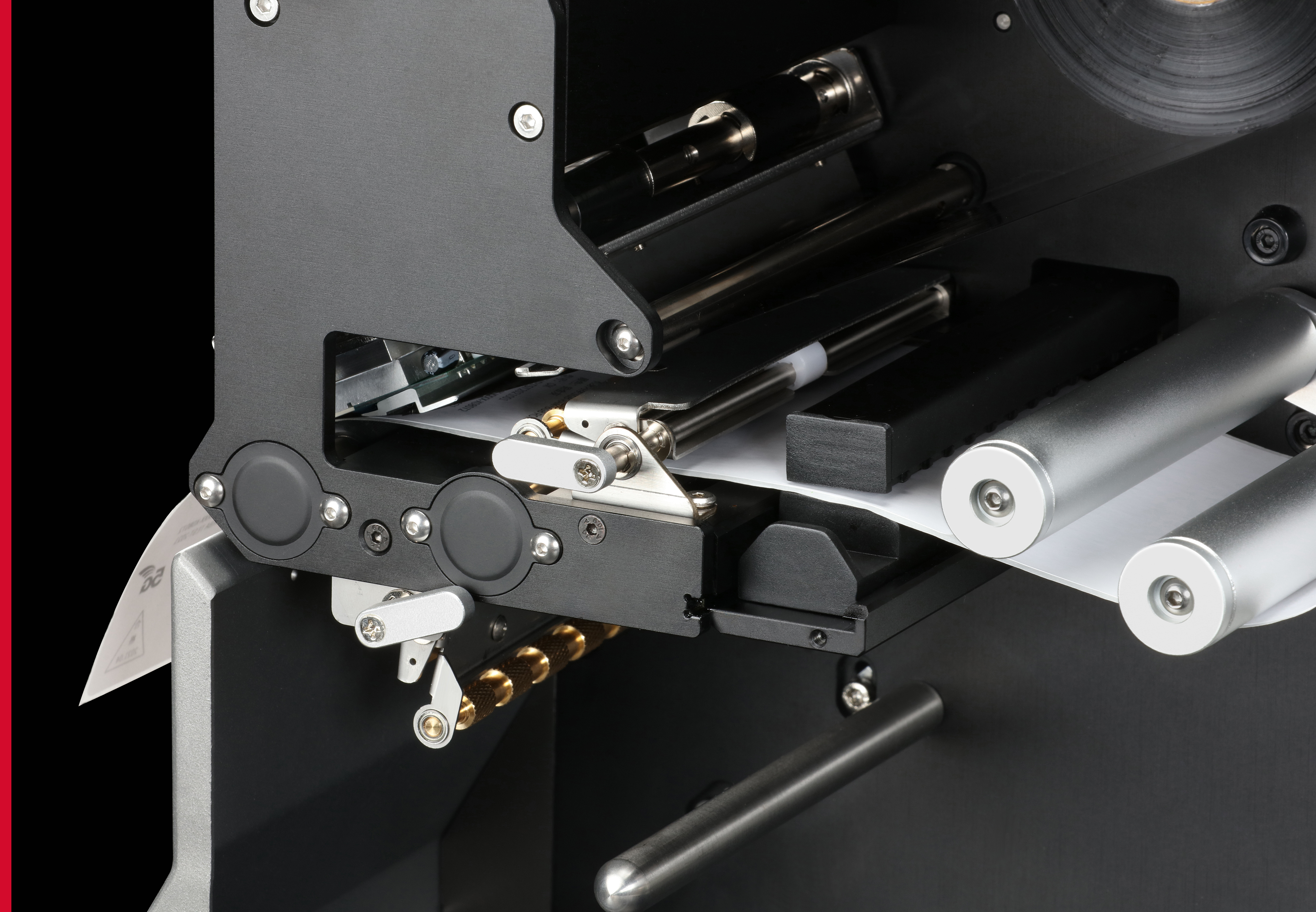

Media Positioning & Loading

The OX Series barcode printer features a horizontal media feeding path on the print engine module, applies constant tension to roll media, and includes ultra-precision parts throughout the media transmission system, bringing media accuracy to an unprecedented level.

Get Started

Make the OX Series Work for You With OX Script

The OX Series features OX Script. Allowing users to build completely customized software that can be tailored to each specific application.

Watch demo

Customize the printer's UI

With OX Script, one can build software that prompts the user for input in real-time. Modifying the printout based on the received input

Cloud Server Communication

Record information without the need for external hardware - the OX Script can communicate directly with cloud servers through protocols such as MQTT or external databases like MySQL

Connect with Peripheral Devices

OX Script enables easy connection to a variety of different devices, including scanners, verifiers, phones, tablets, and computers

Complex Serialization

The OX Series is capable of handling complex real-time interactions, modifying printouts based on a variety of parameters such as time, location, user input, and communication with other devices

Explore More POSTEK Products

As a major player in the automated identification and RFID space, POSTEK sets out to reimagine workflows in the label industry with each and every one of our industrial barcode/RFID printers.

OX Series

TX Series

GX Series

MX Series

About the OX Series

flagship rfid printer

Abundant raw performance fused with cutting-edge technologies that streamline the printing process. POSTEK's OX Series is the most powerful, most capable printing machine available on the market. With the optional RFID/ Visual Verification packages and an optional onboard logic controller, the OX Series is truly ready for everything.

Technical Specs

Model:

OX3

OX6

OX318

RFID:

OX3r

OX6r

OX318r

About the TX Series

Advanced Industrial RFID Printer

With a golden aluminum alloy exterior, and a built-in peeler, the TX Series maintains one of the smallest form factors available for industrial printers. Plus, with more than 2G of RAM and 8G of Flash, the TX Series handles the majority of the processing, while also being able to store tens of thousands of data files. Print away with just a few taps on the printer's interface.

Technical Specs

Model:

TX3

TX6

RFID:

TX3r

TX6r

About the GX Series

Economical Smart Desktop RFID Printer

A melding of convenience and performance, the POSTEK GX Series printer is compact enough to fit into desktop spaces, while maintaining the performance expected from industrial printers. Able fit seamlessly into office spaces and harsh industrial environments, the GX Series features full metal construction for a low-noise, smooth printing experience.

Technical Specs

Model:

GX3

GX6

RFID:

GX3r

GX6r

About the MX Series

Plug and Play RFID Print Engine

No PC, NO PLC, No Problem. Equipped with one of the most advanced quad-core processors on the market, the MX Series can easily serve as the brains of the operation. Controlling peripheral devices such as pistons and sensors directly while still having plenty of power left to process the optional RFID and Visual Verification information directly onboard the printer. Allowing for a true plug-and-play experience with no PLC deployment or coding experience required.

Technical Specs

Model:

MX3/MX3 Pro

MX6/MX6 Pro

RFID:

MX3r/MX3r Pro

MX6r/MX6r Pro

Applicator:

MX3 Pro-Touch

MX6 Pro-Touch

MX3r Pro-Touch

MX6r Pro-Touch

OX3

OX Series

Model: OX3
Print Mode: Direct Thermal and Thermal Transfer
Print Resolution: 300 dpi
Max Print Speed: 14 ips
Max Print Width: 4.16" (105.7 mm)
Max Print Length: 196" (5000 mm)
Memory: 2GB DDR4 RAM, 8GB managed NAND flash
*HEAT™ Level: I
Media: Width: 4.56” (116 mm) max, 0.39" (10 mm) min.
OD: 9” (228.6 mm)max, ID: 1.5 (38 mm) / 3" (76.2 mm)
Minimum Label Length: Tear-off: 0.2” (5 mm)
Peel-off: 0.47” (12 mm), with peeled-label detect; 0.2” (5 mm), w/o peeled-label detect
Cutter: 0.79” (20 mm)
Rewind: 0.2” (5 mm)
Ribbon: Maximum Length: 1968' (600 m)Maximum Outer Diameter: 3.38"(86 mm)Inner Diameter: 1" (25.4 mm) Width: 0.79" to 4.33"(20 mm to 110 mm) Ink side: both In and Out
Media Sensor: Upper reflective: detects black mark on face side
Lower reflective: detects black mark on back side
Transmissive: detects gap, notch, hole
Fonts: Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.
Barcode Types: 1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces: RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, Applicator Control General I/O Signal Interface (Optional), Applicator Peripheral Logic Control I/O Signal Wiring Terminal Block (Optional)
Power Source: 100 - 240 V, 50/60 Hz
Weight: 21.4 kgs (47.08 lbs)
Dimensions: W 12" (305 mm) x D 22.05" (560 mm) x H 16.06" (408 mm)
Operating Environment: Temperature: 32°F ~ +104°F (0°C ~ 40°C) Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment: Temperature: -40°F ~ +140°F (-40°C ~ 60°C) Temperature: 5% - 90% non-condensing
* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

OX6

OX Series

Model: OX6
Print Mode: Direct Thermal and Thermal Transfer
Print Resolution: 600 dpi
Max Print Speed: 7 ips
Max Print Width: 4.16" (105.7 mm)
Max Print Length: 196" (5000 mm)
Memory: 2GB DDR4 RAM, 8GB managed NAND flash
*HEAT™ Level: I
Media: Width: 4.72” (120 mm) max, 0.39" (10 mm) min.
OD: 9” (228.6 mm) max., ID: 1.5 (38 mm) / 3" (76.2 mm)
Minimum Label Length: Tear-off: 0.2” (5 mm)
Peel-off: 0.47” (12 mm), with peeled-label detect; 0.2” (5 mm), w/o peeled-label detect
Cutter: 0.79” (20 mm)
Rewind: 0.2” (5 mm)
Ribbon: Maximum Length: 1968' (600 m)Maximum Outer Diameter: 3.38"(86 mm)Inner Diameter: 1" (25.4 mm) Width: 0.79" to 4.33"(20 mm to 110 mm) Ink side: both In and Out
Media Sensor: Upper reflective: detects black mark on face side
Lower reflective: detects black mark on back side
Transmissive: detects gap, notch, hole
Fonts: Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.
Barcode Types: 1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces: RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, Applicator Control General I/O Signal Interface (Optional), Applicator Peripheral Logic Control I/O Signal Wiring Terminal Block (Optional)
Power Source: 100 - 240 V, 50/60 Hz
Weight: 21.4 kgs (47.08 lbs)
Dimensions: W 12" (305 mm) x D 22.05" (560 mm) x H 16.06" (408 mm)
Operating Environment: Temperature: 32°F ~ +104°F (0°C ~ 40°C) Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment: Temperature: -40°F ~ +140°F (-40°C ~ 60°C) Temperature: 5% - 90% non-condensing
* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

OX318

OX Series

Model: OX318
Print Mode: Direct Thermal and Thermal Transfer
Print Resolution: 300 dpi
Max Print Speed: 10 ips
Max Print Width: 6.6” (168 mm)
Max Print Length: 118” (3000 mm)
Memory: 2GB DDR4 RAM, 8GB managed NAND flash
*HEAT™ Level: I
Media: Width: 7.09” (180 mm) max, 1.18” (30 mm) min.
OD: 9” (228.6 mm) max., ID: 1.5 (38 mm) / 3" (76.2 mm)
Minimum Label Length: Tear-off: 0.59” (15 mm)
Peel-off: 0.47” (12 mm), with peeled-label detect; 0.2” (5 mm), w/o peeled-label detect
Rewind: 0.2” (5 mm)
Ribbon: Maximum Length: 1968' (600 m)Maximum Outer Diameter: 3.38"(86 mm)Inner Diameter: 1" (25.4 mm) Width: 1.18" to 6.93"(30 mm to 176 mm) Ink side: both In and Out
Media Sensor: Upper reflective: detects black mark on face side
Lower reflective: detects black mark on back side
Transmissive: detects gap, notch, hole
Fonts: Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.
Barcode Types: 1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces: RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, Applicator Control General I/O Signal Interface (Optional), Applicator Peripheral Logic Control I/O Signal Wiring Terminal Block (Optional)
Power Source: 100 - 240 V, 50/60 Hz
Weight: 21.4 kgs (47.08 lbs)
Dimensions: W 12" (305 mm) x D 22.05" (560 mm) x H 16.06" (408 mm)
Operating Environment: Temperature: 32°F ~ +104°F (0°C ~ 40°C) Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment: Temperature: -40°F ~ +140°F (-40°C ~ 60°C) Temperature: 5% - 90% non-condensing
* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

OX3r

OX Series

Model: OX3r
Print Mode: Direct Thermal and Thermal Transfer
Print Resolution: 300 dpi
Max Print Speed: 14 ips
Max Print Width: 4.16" (105.7 mm)
Max Print Length: 196" (5000 mm)
Memory: 2GB DDR4 RAM, 8GB managed NAND flash
*HEAT™ Level: I
Media: Width: 4.72” (120 mm) max, 0.39" (10 mm) min.
OD: 9” (228.6 mm) max., ID: 1.5 (38 mm) / 3" (76.2 mm)
Minimum Label Length: Tear-off: 0.2” (5 mm)
Peel-off: 0.47” (12 mm), with peeled-label detect; 0.2” (5 mm), w/o peeled-label detect
Cutter: 0.79” (20 mm)
Rewind: 0.2” (5 mm)
Ribbon: Maximum Length: 1968' (600 m)Maximum Outer Diameter: 3.38"(86 mm)Inner Diameter: 1" (25.4 mm) Width: 0.79" to 4.33"(20 mm to 110 mm) Ink side: both In and Out
Media Sensor: Upper reflective: detects black mark on face side
Lower reflective: detects black mark on back side
Transmissive: detects gap, notch, hole
Fonts: Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.
Barcode Types: 1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces: RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, Applicator Control General I/O Signal Interface (Optional), Applicator Peripheral Logic Control I/O Signal Wiring Terminal Block (Optional)
Power Source: 100 - 240 V, 50/60 Hz
Weight: 21.4 kgs (47.08 lbs)
Dimensions: W 12" (305 mm) x D 22.05" (560 mm) x H 16.06" (408 mm)
Operating Environment: Temperature: 32°F ~ +104°F (0°C ~ 40°C) Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment: Temperature: -40°F ~ +140°F (-40°C ~ 60°C) Temperature: 5% - 90% non-condensing
* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

OX6r

OX Series

Model: OX6r
Print Mode: Direct Thermal and Thermal Transfer
Print Resolution: 600 dpi
Max Print Speed: 7 ips
Max Print Width: 4.16" (105.7 mm)
Max Print Length: 196" (5000 mm)
Memory: 2GB DDR4 RAM, 8GB managed NAND flash
*HEAT™ Level: I
Media: Width: 4.72” (120 mm) max, 0.39" (10 mm) min.
OD: 9” (228.6 mm) max., ID: 1.5 (38 mm) / 3" (76.2 mm)
Minimum Label Length: Tear-off: 0.2” (5 mm)
Peel-off: 0.47” (12 mm), with peeled-label detect; 0.2” (5 mm), w/o peeled-label detect
Cutter: 0.79” (20 mm)
Rewind: 0.2” (5 mm)
Ribbon: Maximum Length: 1968' (600 m)Maximum Outer Diameter: 3.38"(86 mm)Inner Diameter: 1" (25.4 mm) Width: 0.79" to 4.33"(20 mm to 110 mm) Ink side: both In and Out
Media Sensor: Upper reflective: detects black mark on face side
Lower reflective: detects black mark on back side
Transmissive: detects gap, notch, hole
Fonts: Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.
Barcode Types: 1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces: RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, Applicator Control General I/O Signal Interface (Optional), Applicator Peripheral Logic Control I/O Signal Wiring Terminal Block (Optional)
Power Source: 100 - 240 V, 50/60 Hz
Weight: 21.4 kgs (47.08 lbs)
Dimensions: W 12" (305 mm) x D 22.05" (560 mm) x H 16.06" (408 mm)
Operating Environment: Temperature: 32°F ~ +104°F (0°C ~ 40°C) Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment: Temperature: -40°F ~ +140°F (-40°C ~ 60°C) Temperature: 5% - 90% non-condensing
* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

OX318r

OX Series

Model: OX318r
Print Mode: Direct Thermal and Thermal Transfer
Print Resolution: 300 dpi
Max Print Speed: 10 ips
Max Print Width: 6.6” (168 mm)
Max Print Length: 118” (3000 mm)
Memory: 2GB DDR4 RAM, 8GB managed NAND flash
*HEAT™ Level: I
Media: 7.09” (180 mm) max, 1.18” (30 mm) min.
OD: 9” (228.6 mm) max., ID: 1.5 (38 mm) / 3" (76.2 mm)
Minimum Label Length: Tear-off: 0.59” (15 mm)
Peel-off: 0.47” (12 mm), with peeled-label detect; 0.2” (5 mm), w/o peeled-label detect
Rewind: 0.2” (5 mm)
Ribbon: Maximum Length: 1968' (600 m)Maximum Outer Diameter: 3.38"(86 mm)Inner Diameter: 1" (25.4 mm) Width: 1.18" to 6.93"(30 mm to 176 mm) Ink side: both In and Out
Media Sensor: Upper reflective: detects black mark on face side
Lower reflective: detects black mark on back side
Transmissive: detects gap, notch, hole
Fonts: Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.
Barcode Types: 1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces: RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, Applicator Control General I/O Signal Interface (Optional), Applicator Peripheral Logic Control I/O Signal Wiring Terminal Block (Optional)
Power Source: 100 - 240 V, 50/60 Hz
Weight: 21.4 kgs (47.08 lbs)
Dimensions: W 12" (305 mm) x D 22.05" (560 mm) x H 16.06" (408 mm)
Operating Environment: Temperature: 32°F ~ +104°F (0°C ~ 40°C) Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment: Temperature: -40°F ~ +140°F (-40°C ~ 60°C) Temperature: 5% - 90% non-condensing
* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

TX3

TX Series

Model: TX3
Print Mode: Direct Thermal and Thermal Transfer
Print Resolution: 300 dpi
Max Print Speed: 12 ips
Max Print Width: 4.16” (105.7 mm)
Max Print Length: 196” (5000 mm)
Memory: 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level: I
Media: Width: 4.56” (116 mm) max, 0.39" (10 mm) min.
OD: 8” (203.2 mm) max., ID: 1.5 (38 mm) / 3" (76.2 mm)
Minimum Label Length: Tear-off: 0.2” (5 mm)
Cutter: 0.79” (20 mm)
Ribbon: Max Ribbon Length: 196' (600 m) Max Ribbon Width: 4.65” (118 mm)
OMax Outer Diameter: 3.31” (84 mm) Inner Diameter: 1” (25.4 mm)
Ink side: both In and Out.
Media Sensor: Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts: Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.
Barcode Types: 1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces: RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST
Power Source: 100 ~ 240 V , 50/60 Hz
Weight: 15 kgs (33.07 lbs)
Dimensions: W 11.3” (286 mm) x D 17.6” (448 mm) x H 10.7” (271 mm)
Operating Environment: Temperature: 32°F ~ +104°F (0°C ~ 40°C) Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment: Temperature: -40°F ~ +140°F (-40°C ~ 60°C) Temperature: 5% - 90% non-condensing
Optional Items: Cutters, Wireless Module
* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

TX6

TX Series

Model: TX6
Print Mode: Direct Thermal and Thermal Transfer
Print Resolution: 600 dpi
Max Print Speed: 6 ips
Max Print Width: 4.16” (105.7 mm)
Max Print Length: 196” (5000 mm)
Memory: 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level: I
Media: Width: 4.56” (116 mm) max, 0.39" (10 mm) min.
OD: 8” (203.2 mm) max., ID: 1.5 (38 mm) / 3" (76.2 mm)
Minimum Label Length: Tear-off: 0.2” (5 mm)
Cutter: 0.79” (20 mm)
Ribbon: Max Ribbon Length: 196' (600 m) Max Ribbon Width: 4.65” (118 mm)
OMax Outer Diameter: 3.31” (84 mm) Inner Diameter: 1” (25.4 mm)
Ink side: both In and Out.
Media Sensor: Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts: Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.
Barcode Types: 1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces: RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST
Power Source: 100 ~ 240 V , 50/60 Hz
Weight: 15 kgs (33.07 lbs)
Dimensions: W 11.3” (286 mm) x D 17.6” (448 mm) x H 10.7” (271 mm)
Operating Environment: Temperature: 32°F ~ +104°F (0°C ~ 40°C) Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment: Temperature: -40°F ~ +140°F (-40°C ~ 60°C) Temperature: 5% - 90% non-condensing
Optional Items: Cutters, Wireless Module
* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

TX3r

TX Series

Model: TX3r
Print Mode: Direct Thermal and Thermal Transfer
Print Resolution: 300 dpi
Max Print Speed: 12 ips
Max Print Width: 4.16” (105.7 mm)
Max Print Length: 196” (5000 mm)
Memory: 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level: I
Media: Width: 4.56” (116 mm) max, 0.39" (10 mm) min.
OD: 8” (203.2 mm) max., ID: 3" (76.2 mm)
Minimum Label Length: Tear-off: 0.2” (5 mm)
Cutter: 0.79” (20 mm)
Ribbon: Max Ribbon Length: 196' (600 m) Max Ribbon Width: 4.65” (118 mm)
OMax Outer Diameter: 3.31” (84 mm) Inner Diameter: 1” (25.4 mm)
Ink side: both In and Out.
Media Sensor: Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts: Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.
Barcode Types: 1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces: RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST
Power Source: 100 ~ 240 V , 50/60 Hz
Weight: 15 kgs (33.07 lbs)
Dimensions: W 11.3” (286 mm) x D 17.6” (448 mm) x H 10.7” (271 mm)
Operating Environment: Temperature: 32°F ~ +104°F (0°C ~ 40°C) Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment: Temperature: -40°F ~ +140°F (-40°C ~ 60°C) Temperature: 5% - 90% non-condensing
Optional Items: Cutters, Wireless Module
* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

TX6r

TX Series

Model: TX6r
Print Mode: Direct Thermal and Thermal Transfer
Print Resolution: 600 dpi
Max Print Speed: 6 ips
Max Print Width: 4.16” (105.7 mm)
Max Print Length: 196” (5000 mm)
Memory: 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level: I
Media: Width: 4.56” (116 mm) max, 0.39" (10 mm) min.
OD: 8” (203.2 mm) max., ID: 3" (76.2 mm)
Minimum Label Length: Tear-off: 0.2” (5 mm)
Cutter: 0.79” (20 mm)
Ribbon: Max Ribbon Length: 196' (600 m) Max Ribbon Width: 4.65” (118 mm)
OMax Outer Diameter: 3.31” (84 mm) Inner Diameter: 1” (25.4 mm)
Ink side: both In and Out.
Media Sensor: Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts: Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.
Barcode Types: 1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces: RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST
Power Source: 100 ~ 240 V , 50/60 Hz
Weight: 15 kgs (33.07 lbs)
Dimensions: W 11.3” (286 mm) x D 17.6” (448 mm) x H 10.7” (271 mm)
Operating Environment: Temperature: 32°F ~ +104°F (0°C ~ 40°C) Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment: Temperature: -40°F ~ +140°F (-40°C ~ 60°C) Temperature: 5% - 90% non-condensing
Optional Items: Cutters, Wireless Module
* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

GX3

GX Series

Model: GX3
Print Mode: Direct Thermal and Thermal Transfer
Print Resolution: 300 dpi
Max Print Speed: 8 ips
Max Print Width: 4.16” (105.7 mm)
Max Print Length: 157” (4000 mm)
Memory: 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level: I
Media: Width: 4.41” (112 mm) max, 0.98” (25 mm) min.
OD: 6" (152 mm) max., ID: 1.5" (38.1mm) / 3" (76.2mm)
Minimum Label Length: Tear-off: 0.2” (5 mm)
Peel-off: 0.47” (12 mm)
Cutter: A150/A400: 0.79” (20 mm)
AG120/AG300: 0.51” (13 mm)
Ribbon: Maximum Length: 984.25' (300 m)Maximum Outer Diameter: 2.75"(70 mm)Inner Diameter: 1" (25.4 mm) Width: 0.79" to 4.33"(20 mm to 110 mm)
Ink side: Out
Media Sensor: Reflective (Adjustable) and Transmissive (Two positions)
Fonts: Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.
Barcode Types: 1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces: RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST
Power Source: 100 ~ 240 V , 50/60 Hz
Weight: 8.2 kgs (18 lbs)
Dimensions: W 10.58" (268.8mm) x D 13.88" (352.5mm) x H 7.80" (198.2mm)
Operating Environment: Temperature: 32°F ~ +104°F (0°C ~ 40°C) Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment: Temperature: -40°F ~ +140°F (-40°C ~ 60°C) Temperature: 5% - 90% non-condensing
Optional Items: External Label Rewinder, External Media Stand, and Cutters
* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

GX6

GX Series

Model: GX6
Print Mode: Direct Thermal and Thermal Transfer
Print Resolution: 600 dpi
Max Print Speed: 5 ips
Max Print Width: 4.16” (105.7 mm)
Max Print Length: 40” (1016 mm)
Memory: 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level: I
Media: Width: 4.41” (112 mm) max, 0.98” (25 mm) min.
OD: 6" (152 mm) max., ID: 1.5(38 mm) / 3" (76.2 mm)
Minimum Label Length: Tear-off: 0.2” (5 mm)
Peel-off: 0.47” (12 mm)
Cutter: A150/A400: 0.79” (20 mm)
AG120/AG300: 0.51” (13 mm)
Ribbon: Maximum Length: 984.25' (300 m)Maximum Outer Diameter: 2.75"(70 mm)Inner Diameter: 1" (25.4 mm) Width: 0.79" to 4.33"(20 mm to 110 mm)
Ink side: Out
Media Sensor: Reflective (Adjustable) and Transmissive (Two positions)
Fonts: Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.
Barcode Types: 1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces: RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST
Power Source: 100 ~ 240 V , 50/60 Hz
Weight: 8.2 kgs (18 lbs)
Dimensions: W 10.58" (268.8mm) x D 13.88" (352.5mm) x H 7.80" (198.2mm)
Operating Environment: Temperature: 32°F ~ +104°F (0°C ~ 40°C) Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment: Temperature: -40°F ~ +140°F (-40°C ~ 60°C) Temperature: 5% - 90% non-condensing
Optional Items: External Label Rewinder, External Media Stand, and Cutters
* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

GX3r

GX Series

Model: GX3r
Print Mode: Direct Thermal and Thermal Transfer
Print Resolution: 300 dpi
Max Print Speed: 8 ips
Max Print Width: 4.16” (105.7 mm)
Max Print Length: 157” (4000 mm)
Memory: 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level: I
Media: Width: 4.41” (112 mm) max, 0.98” (25 mm) min.
OD: 6" (152 mm) max., ID: 1.5" (25.4mm) / 3" (76.2mm)
Minimum Label Length: Tear-off: 0.2” (5 mm)
Peel-off: 0.47” (12 mm)
Cutter: A150/A400: 0.79” (20 mm)
AG120/AG300: 0.51” (13 mm)
Ribbon: Maximum Length: 984.25' (300 m)Maximum Outer Diameter: 2.75"(70 mm)Inner Diameter: 1" (25.4 mm) Width: 0.79" to 4.33"(20 mm to 110 mm)
Ink side: Out
Media Sensor: Reflective (Adjustable) and Transmissive (Two positions)
Fonts: Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.
Barcode Types: 1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces: RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST
Power Source: 100 ~ 240 V , 50/60 Hz
Weight: 8.2 kgs (18 lbs)
Dimensions: W 10.58" (268.8mm) x D 13.88" (352.5mm) x H 7.80" (198.2mm)
Operating Environment: Temperature: 32°F ~ +104°F (0°C ~ 40°C) Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment: Temperature: -40°F ~ +140°F (-40°C ~ 60°C) Temperature: 5% - 90% non-condensing
Optional Items: External Label Rewinder, External Media Stand, and Cutters
* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

GX6r

GX Series

Model: GX6r
Print Mode: Direct Thermal and Thermal Transfer
Print Resolution: 600 dpi
Max Print Speed: 5 ips
Max Print Width: 4.16” (105.7 mm)
Max Print Length: 40” (1016 mm)
Memory: 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level: I
Media: Width: 4.41” (112 mm) max, 0.98” (25 mm) min.
OD: 6" (152 mm) max., ID: 1.5" (25.4mm) / 3" (76.2mm)
Minimum Label Length: Tear-off: 0.2” (5 mm)
Peel-off: 0.47” (12 mm)
Cutter: A150/A400: 0.79” (20 mm)
AG120/AG300: 0.51” (13 mm)
Ribbon: Maximum Length: 984.25' (300 m)Maximum Outer Diameter: 2.75"(70 mm)Inner Diameter: 1" (25.4 mm) Width: 0.79" to 4.33"(20 mm to 110 mm)
Ink side: Out
Media Sensor: Reflective (Adjustable) and Transmissive (Two positions)
Fonts: Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.
Barcode Types: 1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces: RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST
Power Source: 100 ~ 240 V , 50/60 Hz
Weight: 8.2 kgs (18 lbs)
Dimensions: W 10.58" (268.8mm) x D 13.88" (352.5mm) x H 7.80" (198.2mm)
Operating Environment: Temperature: 32°F ~ +104°F (0°C ~ 40°C) Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment: Temperature: -40°F ~ +140°F (-40°C ~ 60°C) Temperature: 5% - 90% non-condensing
Optional Items: External Label Rewinder, External Media Stand, and Cutters
* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

MX3/MX3 Pro

MX Series

Model: MX3/MX3 Pro
Print Mode: Direct Thermal and Thermal Transfer
Print Resolution: 300 dpi
Max Print Speed: 14 ips
Max Print Width: 4.16” (105.7 mm)
Max Print Length: 196” (5000 mm)
Memory: 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level: I
Media: Width: 4.72” (120 mm) max, 0.39” (10 mm) min.
OD: 12” (304.8 mm) max., ID: 1.5(38 mm) / 3" (76.2 mm)
Minimum Label Length: Tear-off: 0.20” (5 mm)
Peel-off: 0.47” (12 mm)
Ribbon: Width: 0.79” to 4.33” (20 mm to 110 mm)
Maximum Ribbon Length: 1968' (600 m)
Maximum Outer Diameter: 3.38” (86 mm)
Inner Diameter: 1” (25.4 mm)
Ink side: both In and Out
Media Sensor: Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts: Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.User downloadable TrueType fonts.
User downloadable TrueType fonts.
Barcode Types: 1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces: RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface, Logic Control I/O Signal Wiring Terminal Block
Power Source: 100 ~ 240 V , 50/60 Hz
Weight: MX3: 13.5 kgs (29.76 lbs)
MX3 Pro: 18 kgs (39.68 lbs)
Dimensions: MX3: W 9.6"(245 mm) x D 16.0"(405.8 mm) x H 12.1"(306.7 mm)
MX3 Pro: W 20.3"(515 mm) x D 16.0"(405.8 mm) x H 14.4"(366 mm)
Operating Environment: Temperature: 32°F ~ +104°F (0°C ~ 40°C) Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment: Temperature: -40°F ~ +140°F (-40°C ~ 60°C) Temperature: 5% - 90% non-condensing
* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

MX6/MX6 Pro

MX Series

Model: MX6/MX6 Pro
Print Mode: Direct Thermal and Thermal Transfer
Print Resolution: 600 dpi
Max Print Speed: 6 ips
Max Print Width: 4.16” (105.7 mm)
Max Print Length: 196” (5000 mm)
Memory: 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level: I
Media: Width: 4.72” (120 mm) max, 0.39" (10 mm) min.
OD: 12” (304.8 mm) max., ID: 1.5(38 mm) / 3" (76.2 mm)
Minimum Label Length: Tear-off: 0.20” (5 mm)
Peel-off: 0.47” (12 mm)
Ribbon: Width: 0.79” to 4.33” (20 mm to 110 mm)
Maximum Ribbon Length: 1968' (600 m)
Maximum Outer Diameter: 3.38” (86 mm)
Inner Diameter: 1” (25.4 mm)
Ink side: both In and Out
Media Sensor: Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts: Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.User downloadable TrueType fonts.
User downloadable TrueType fonts.
Barcode Types: 1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces: RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface, Logic Control I/O Signal Wiring Terminal Block
Power Source: 100 ~ 240 V , 50/60 Hz
Weight: MX6: 14 kgs (30.86 lbs)
MX6 Pro: 18.5 kgs (40.79 lbs)
Dimensions: MX6: W 9.6"(245 mm) x D 16.0"(405.8 mm) x H 12.1"(306.7 mm)
MX6 Pro: W 20.3"(515 mm) x D 16.0"(405.8 mm) x H 14.4"(366 mm)
Operating Environment: Temperature: 32°F ~ +104°F (0°C ~ 40°C) Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment: Temperature: -40°F ~ +140°F (-40°C ~ 60°C) Temperature: 5% - 90% non-condensing
* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

MX3r/MX3r Pro

MX Series

Model: MX3r/MX3r Pro
Print Mode: Direct Thermal and Thermal Transfer
Print Resolution: 300 dpi
Max Print Speed: 14 ips
Max Print Width: 4.16” (105.7 mm)
Max Print Length: 196” (5000 mm)
Memory: 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level: I
Media: Width: 4.72” (120 mm) max, 0.39" (10 mm) min.
OD: 12” (304.8 mm) max., ID: 1.5(38 mm) / 3" (76.2 mm)
Minimum Label Length: Tear-off: 0.20” (5 mm)
Peel-off: 0.47” (12 mm)
Ribbon: Width: 0.79” to 4.33” (20 mm to 110 mm)
Maximum Ribbon Length: 1968' (600 m)
Maximum Outer Diameter: 3.38” (86 mm)
Inner Diameter: 1” (25.4 mm)
Ink side: both In and Out
Media Sensor: Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts: Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.User downloadable TrueType fonts.
User downloadable TrueType fonts.
Barcode Types: 1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces: RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface, Logic Control I/O Signal Wiring Terminal Block
Power Source: 100 ~ 240 V , 50/60 Hz
Weight: MX3r: 13.5 kgs (29.76 lbs)
MX3r Pro: 18 kgs (39.68 lbs)
Dimensions: MX3r: W 9.6"(245 mm) x D 16.0"(405.8 mm) x H 12.1"(306.7 mm)
MX3r Pro: W 20.3"(515 mm) x D 16.0"(405.8 mm) x H 14.4"(366 mm)
Operating Environment: Temperature: 32°F ~ +104°F (0°C ~ 40°C) Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment: Temperature: -40°F ~ +140°F (-40°C ~ 60°C) Temperature: 5% - 90% non-condensing
* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

MX6r/MX6r Pro

MX Series

Model: MX6r/MX6r Pro
Print Mode: Direct Thermal and Thermal Transfer
Print Resolution: 600 dpi
Max Print Speed: 6 ips
Max Print Width: 4.16” (105.7 mm)
Max Print Length: 196” (5000 mm)
Memory: 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level: I
Media: Width: 4.72” (120 mm) max, 0.39" (10 mm) min.
OD: 12” (304.8 mm) max., ID: 1.5(38 mm) / 3" (76.2 mm)
Minimum Label Length: Tear-off: 0.20” (5 mm)
Peel-off: 0.47” (12 mm)
Ribbon: Width: 0.79” to 4.33” (20 mm to 110 mm)
Maximum Ribbon Length: 1968' (600 m)
Maximum Outer Diameter: 3.38” (86 mm)
Inner Diameter: 1” (25.4 mm)
Ink side: both In and Out
Media Sensor: Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts: Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.User downloadable TrueType fonts.
User downloadable TrueType fonts.
Barcode Types: 1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces: RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface, Logic Control I/O Signal Wiring Terminal Block
Power Source: 100 ~ 240 V , 50/60 Hz
Weight: MX6: 14 kgs (30.86 lbs)
MX6r Pro: 18.5 kgs (40.79 lbs)
Dimensions: MX6r: W 9.6"(245 mm) x D 16.0"(405.8 mm) x H 12.1"(306.7 mm)
MX6r Pro: W 20.3"(515 mm) x D 16.0"(405.8 mm) x H 14.4"(366 mm)
Operating Environment: Temperature: 32°F ~ +104°F (0°C ~ 40°C) Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment: Temperature: -40°F ~ +140°F (-40°C ~ 60°C) Temperature: 5% - 90% non-condensing
* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

MX3 Pro-Touch

MX Series

Model: MX3 Pro-Touch
Print Mode: Direct Thermal and Thermal Transfer
Print Resolution: 300 dpi
Max Print Speed: 14 ips
Max Print Width: 4.16” (105.7 mm)
Memory: 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level: I
Media: Maximum Outer Diameter: 12” (304.8 mm)
Inner Diameter: 3” (76.2 mm)
Ribbon: Width: 0.79” ~ 4.33” (20 ~ 110 mm)
Length: 1968' (600 m) max.
Outer Diameter: 3.38” (86 mm) max.
Inner Diameter: 1” (25.4 mm)
Media Sensor: Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts: Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.User downloadable TrueType fonts.
User downloadable TrueType fonts.
Barcode Types: 1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces: RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface, Logic Control I/O Signal Wiring Terminal Block
Power Source: 100 ~ 240 V , 50/60 Hz
Operating Environment: Temperature: 32°F ~ +104°F (0°C ~ 40°C) Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment: Temperature: -40°F ~ +140°F (-40°C ~ 60°C) Temperature: 5% - 90% non-condensing
* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

MX6 Pro-Touch

MX Series

Model: MX6 Pro-Touch
Print Mode: Direct Thermal and Thermal Transfer
Print Resolution: 600 dpi
Max Print Speed: 6 ips
Max Print Width: 4.16” (105.7 mm)
Memory: 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level: I
Media: Maximum Outer Diameter: 12” (304.8 mm)
Inner Diameter: 3” (76.2 mm)
Ribbon: Width: 0.79” ~ 4.33” (20 ~ 110 mm)
Length: 1968' (600 m) max.
Outer Diameter: 3.38” (86 mm) max.
Inner Diameter: 1” (25.4 mm)
Media Sensor: Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts: Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.User downloadable TrueType fonts.
User downloadable TrueType fonts.
Barcode Types: 1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces: RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface, Logic Control I/O Signal Wiring Terminal Block
Power Source: 100 ~ 240 V , 50/60 Hz
Operating Environment: Temperature: 32°F ~ +104°F (0°C ~ 40°C) Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment: Temperature: -40°F ~ +140°F (-40°C ~ 60°C) Temperature: 5% - 90% non-condensing
* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

MX3r Pro-Touch

MX Series

Model: MX3r Pro-Touch
Print Mode: Direct Thermal and Thermal Transfer
Print Resolution: 300 dpi
Max Print Speed: 14 ips
Max Print Width: 4.16” (105.7 mm)
Memory: 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level: I
Media: Maximum Outer Diameter: 12” (304.8 mm)
Inner Diameter: 3” (76.2 mm)
Ribbon: Width: 0.79” ~ 4.33” (20 ~ 110 mm)
Length: 1968' (600 m) max.
Outer Diameter: 3.38” (86 mm) max.
Inner Diameter: 1” (25.4 mm)
Media Sensor: Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts: Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.User downloadable TrueType fonts.
User downloadable TrueType fonts.
Barcode Types: 1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces: RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface, Logic Control I/O Signal Wiring Terminal Block
Power Source: 100 ~ 240 V , 50/60 Hz
Operating Environment: Temperature: 32°F ~ +104°F (0°C ~ 40°C) Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment: Temperature: -40°F ~ +140°F (-40°C ~ 60°C) Temperature: 5% - 90% non-condensing
* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

MX6r Pro-Touch

MX Series

Model: MX6r Pro-Touch
Print Mode: Direct Thermal and Thermal Transfer
Print Resolution: 600 dpi
Max Print Speed: 6 ips
Max Print Width: 4.16” (105.7 mm)
Memory: 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level: I
Media: Maximum Outer Diameter: 12” (304.8 mm)
Inner Diameter: 3” (76.2 mm)
Ribbon: Width: 0.79” ~ 4.33” (20 ~ 110 mm)
Length: 1968' (600 m) max.
Outer Diameter: 3.38” (86 mm) max.
Inner Diameter: 1” (25.4 mm)
Media Sensor: Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts: Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.User downloadable TrueType fonts.
User downloadable TrueType fonts.
Barcode Types: 1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces: RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface, Logic Control I/O Signal Wiring Terminal Block
Power Source: 100 ~ 240 V , 50/60 Hz
Operating Environment: Temperature: 32°F ~ +104°F (0°C ~ 40°C) Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment: Temperature: -40°F ~ +140°F (-40°C ~ 60°C) Temperature: 5% - 90% non-condensing
* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.
